USB C Docking Station Dual Monitor Adapter, 14 in 1 USB C Triple Display Docking Station to Dual HDMI,VGA,Ethernet,3USB3.0,2 USB2.0,PD,USB C Port,SD/TF, Audio for Dell XPS 13/15, Lenovo Yoga,HP x360

Save $15.00

Price:
Sale price$134.99 Regular price$149.99

Description

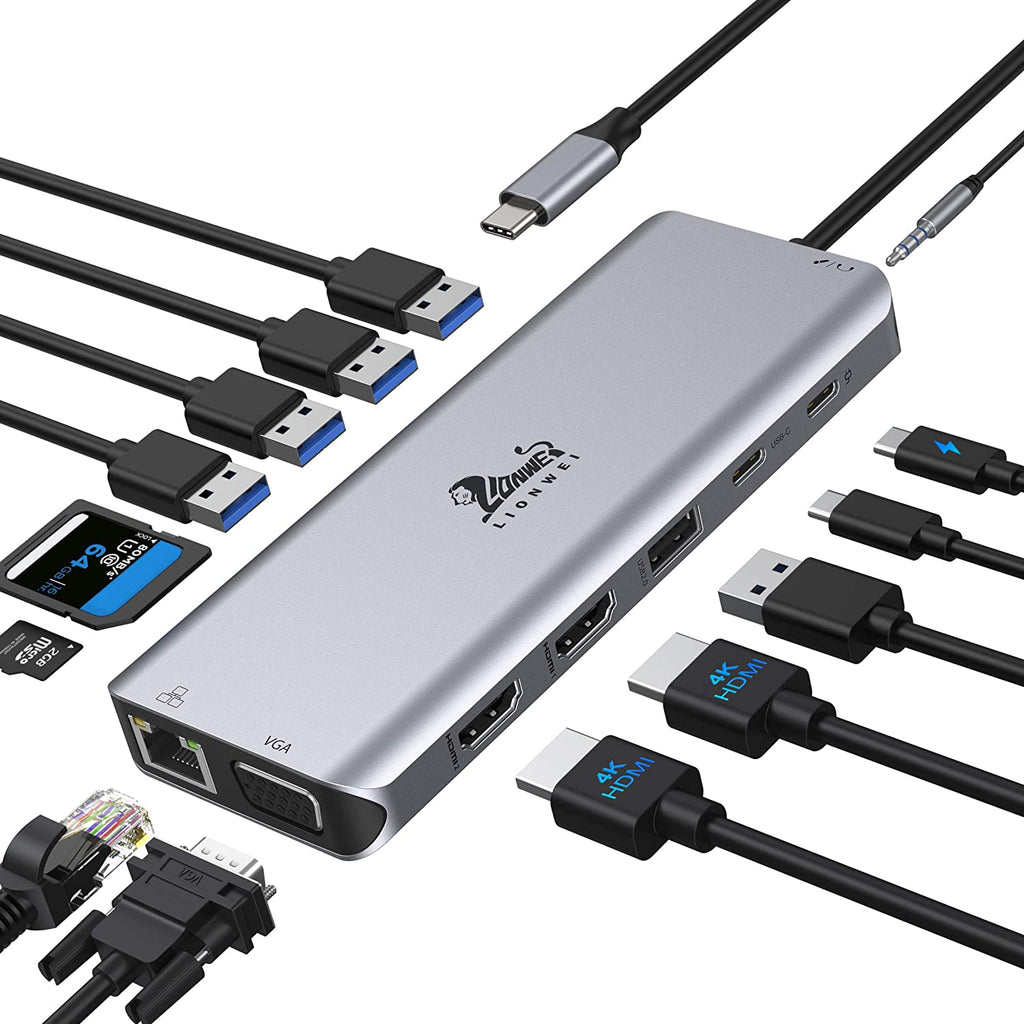

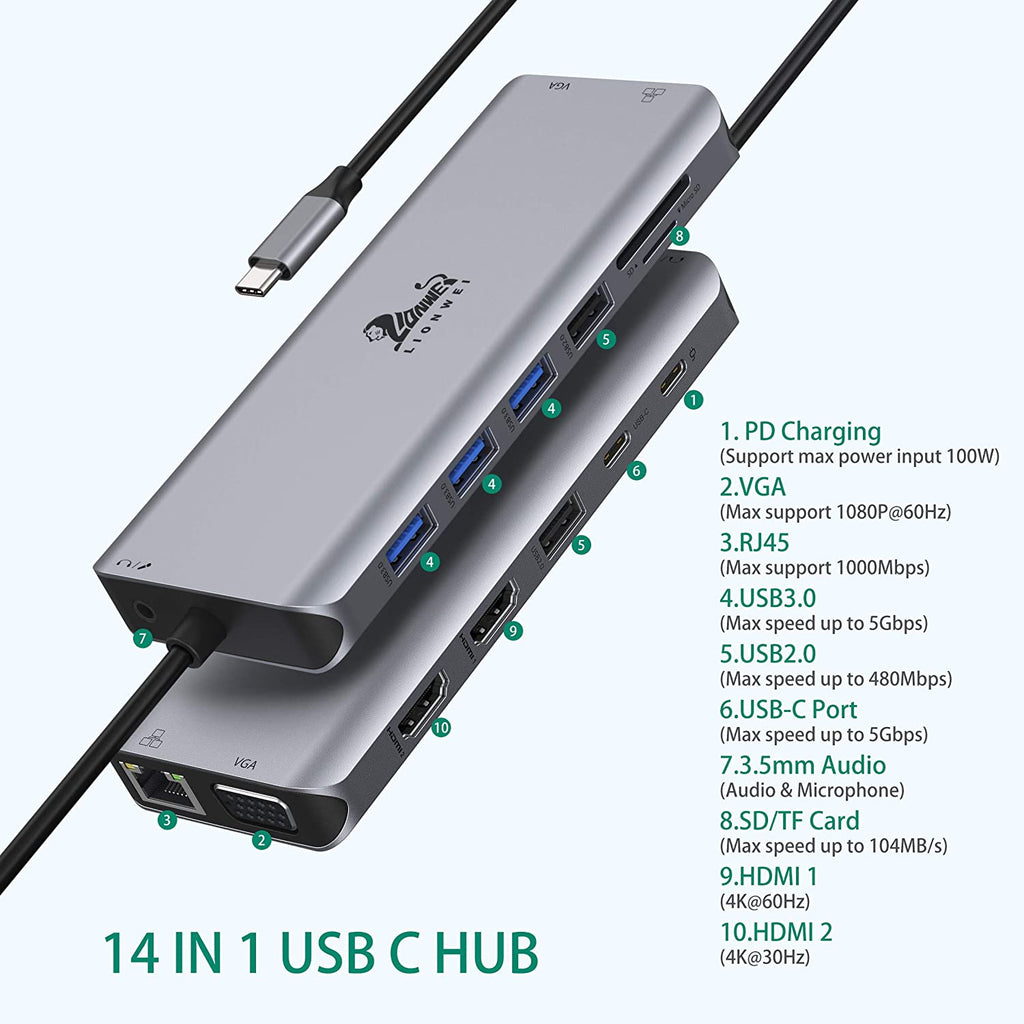

  • 14 IN 1 USB C Laptop Docking Station: With this LIONWEI dual hdmi adapter,you can easily expand the type c/thunderbolt 3 port of your USB C Laptops into 14 Ports: 2x4K HDMI, 3xUSB 3.0,2xUSB 2.0, SD/TF Card Reader,1080P VGA, Gigabit Ethernet, Audio, 100W PD and USB C Data Transfer; Plug and play, no need to install any driver or software.
  • Dual 4K HDMI Output & 1080P VGA: This USB C to Dual HDMI Adapter allows extending your USB c laptops to 3 different monitors, supports stream 4K UHD or full HD 1080P video using HDMI or VGA port, The resolution of two HDMI up to 3840*2160@60hz, 3840*2160@30hz, resolution of VGA up to 1920*1080@60Hz. ❤Note: Limited by Apple Mac OS system itself, Mac OS system can only supports SST mode, the display of 4 screens will be Laptop(A)+Monitor1(B)+Monitor2(B)+Monitor3(B).
  • Multiple High-Speed Data Transfer Ports: This multi display docking station with 3 USB 3.0 Ports(speed up to 5Gbp/s), 2 USB 2.0 ports(speed up to 480mb/s) and SD/TF Card reader(speed up to 5Gbp/s) and 1*usb c data port speeding up to 5Gbp/s, this dual hdmi monitor adapter supports to transfer music, movies, large files and more in seconds. In addition, 2 USB 2.0 ports allow you to connect the keyboard or mouse without any lag.

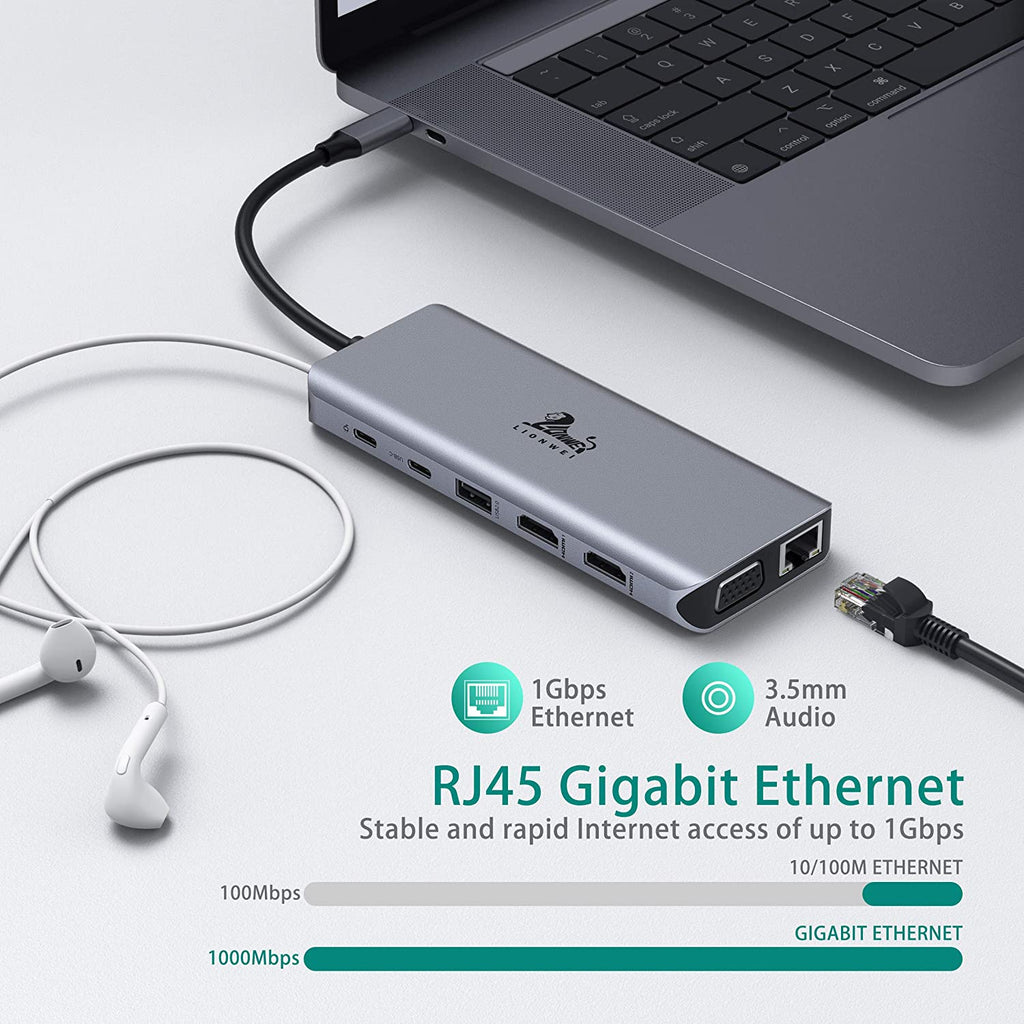

  • 100W PD Charging Port & Gigabit Ethernet: This USB C dual hdmi docking station supports charging your laptop at power up to 100W while connecting multiple devices, no need to worry about power storage. It provides high-speed stable ethernet condition for you, speed up to 1000Mbps, which make your work more effective; In addition, there is a 3.5mm Audio port to put in your headphone, so that you can enjoy the music and movie without disturbing others.
  • Extensive compatibility: This Dual monitor latpop docking stations compatible with Thunderbolt 3 or type c port compatible devices,such as MacBook/MacBook Pro2020 2019 2018 2017,MacBook Air2020-2018,iPad Pro 2018,Lenovo Yoga 720/910/920/930,Microsoft Surface Book 2,Dell XPS13/15,Surface Laptop 3,Dell Latitude 13 7000/ E7370etc. (❤Note: HDMI DP function need to confirm if the usb c port of your device supports DisplayPort Alternate Mode.)



5585

Read Before Purchase -

1. Please ensure that your device has a thunderbolt 3 / USB-C 3.1 Gen 1 or above ports that support "Power Delivery&DisplayPort Alt Mode" to expand multiple displays. HDMI DP function need to confirm if the usb c port of your device supports DisplayPort Alternate Mode. You can contact LIONWEI if you are not sure.

2. ONLY when your devices support 4K resolution, the video output will be 4K, please make sure to use HDMI 2.0 or higher cable.

3.Power will be a community between all dock-connected USB C devices. For a fast charge result, please choose an adapter that is over 72W to charge.

4.Please plug in the Laptop's power adapter to the USB-C Power Delivery port before connecting an external hard drive or multiple display purposes.

5.If your device is MacBook M1 series, it can only support one external monitor due to chip limitation! (MacBook Air M1 2020, MacBook Pro M1 2020, Mac mini M1)

- Compatibility judgment -

Please ensure the Laptop has thunderbolt 3 / USB-C 3.1 Gen 1 or above ports (support Power Delivery&DisplayPort Alt Mode) port to support multiple-display before purchase.

×The USB-C 3.1 Gen 1: 5Gb/s (data transfer only) can't support video display.

usb c hub for macbook usb c docking station

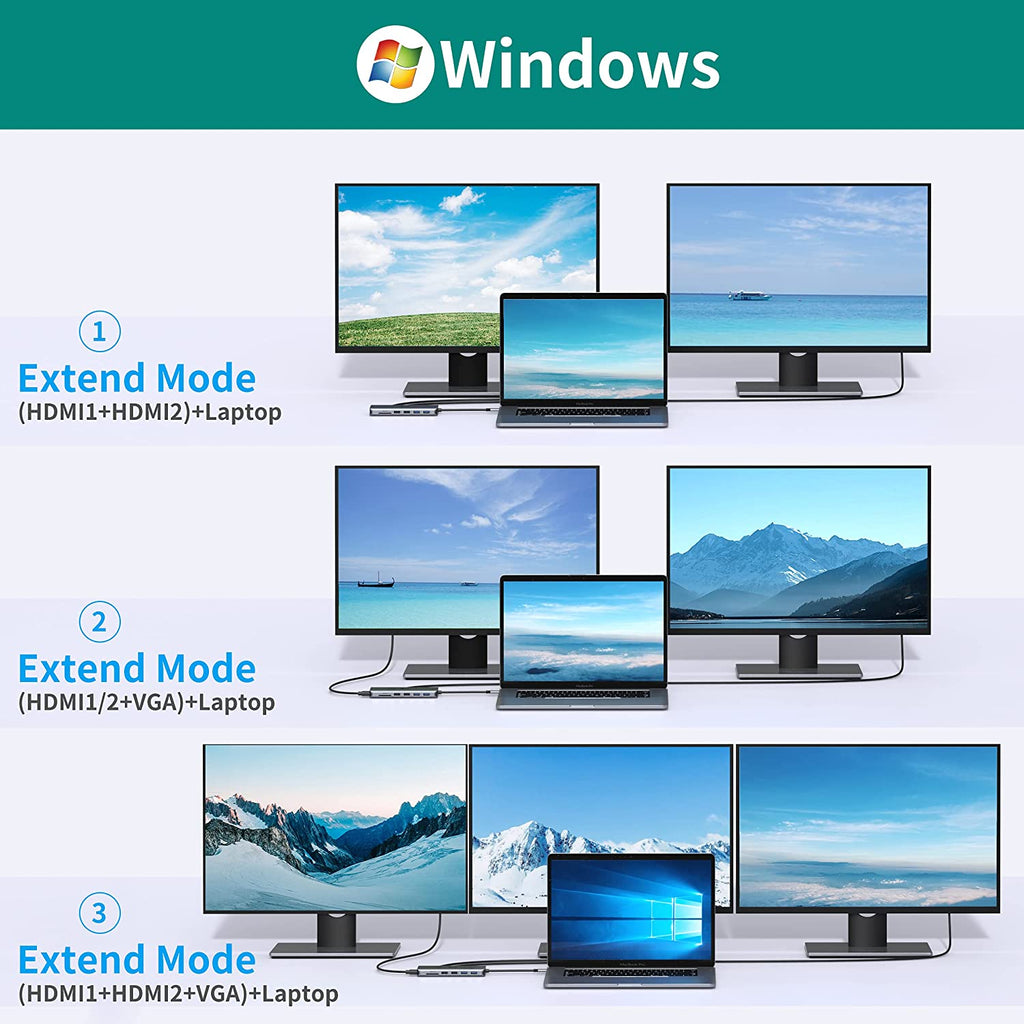

Triple Display for Windows Mirror Mode: AA,AAA,AAAA ; Extend Mode: AB,ABB,ABC,ABBB,AABC,ABCD

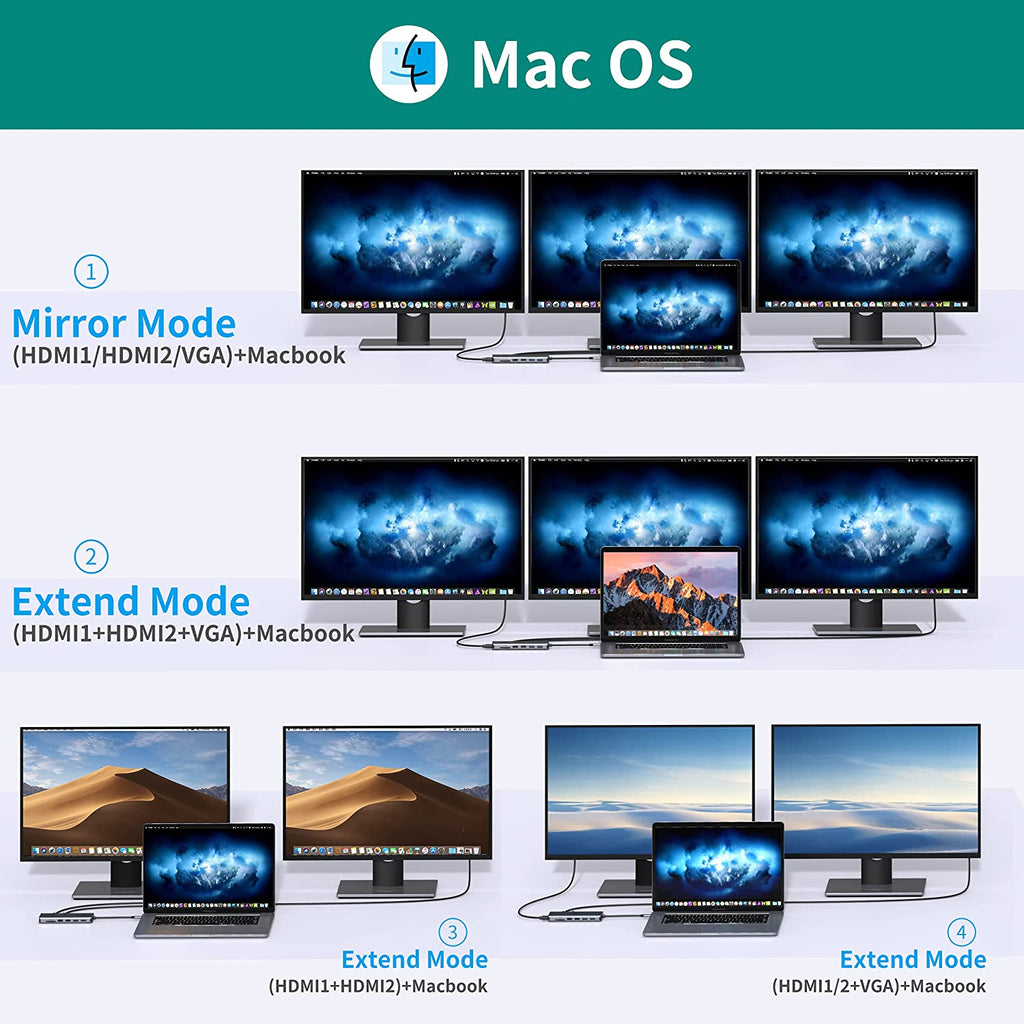

Triple Display for Mac Mirror Mode: AA,AAA,AAAA; Extend Mode: AB,ABB,ABBB
Setting of Mirror/Extend Mode Windows: Click the Graphic Settings or Win+P to choose mirror or extend mode; Mac: Apple logo-System Preferences-Displays-Mirror Display(Yes or Not)
HDMI Problem A. Make sure the type c power delivery port on you laptop is thunderbolt 3 / USB-C 3.1 Gen 1 or above ports that support "Power Delivery&DisplayPort Alt Mode". B. Check your HDMI cable. Use HDMI2.0 or above cables for optimum performance. C. Ensure sufficient power supply from the USB C hub.

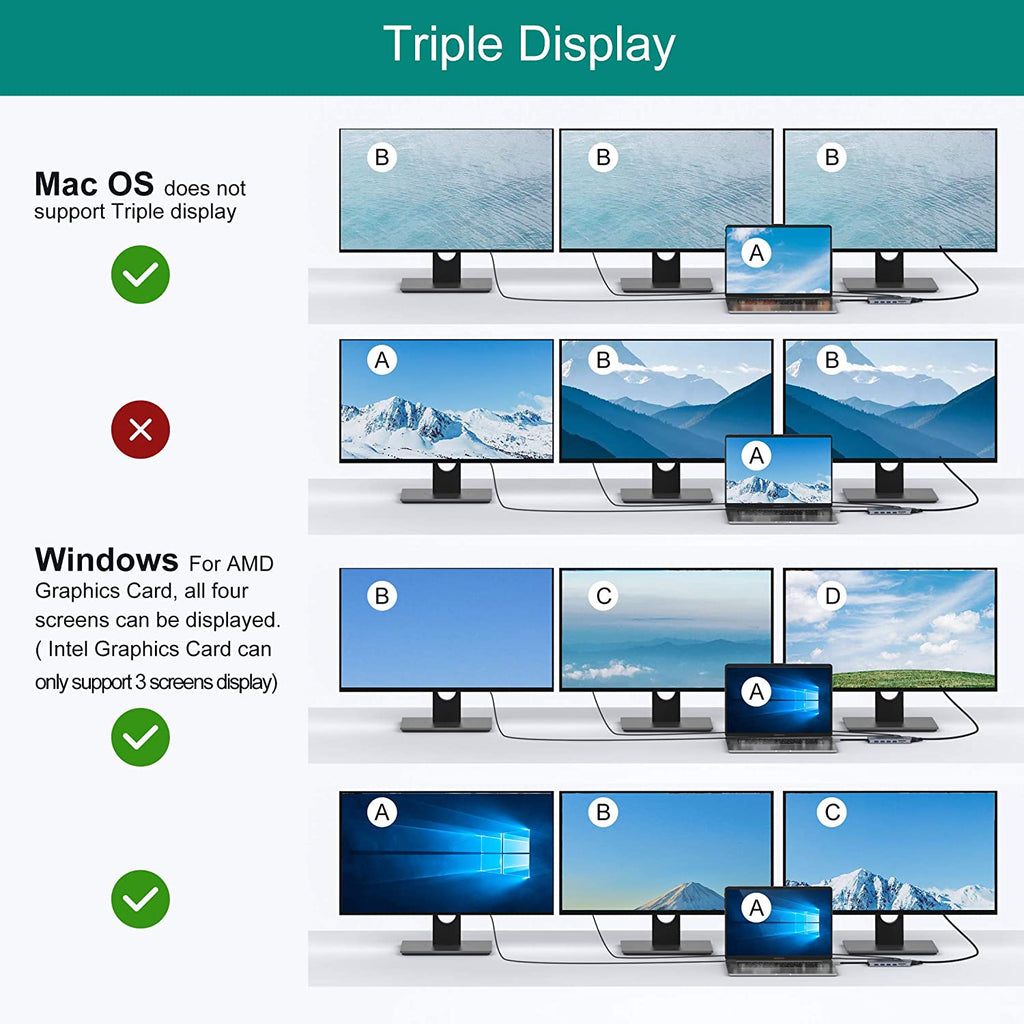

Display Problem For Intel Graphics Card(DP1.2), it only supports 3 screens display, thus one of four screens (including laptop screen) will not be displayed. For AMD Graphics Card(DP 1.4), all four screens will be displayed.
Resolution Problem Normally all three monitors will output 1080P resolution. If your laptop bandwidth isn't enough, one of the monitor screen resolution might be lower than 1920 x 1080@60Hz.
Note EDID(Extended Display Identification Data) may blackout for a few seconds(1 minute at max, depends on Laptop and monitor) when data transfer; Please be patient wait for the data completed.



9

9

5

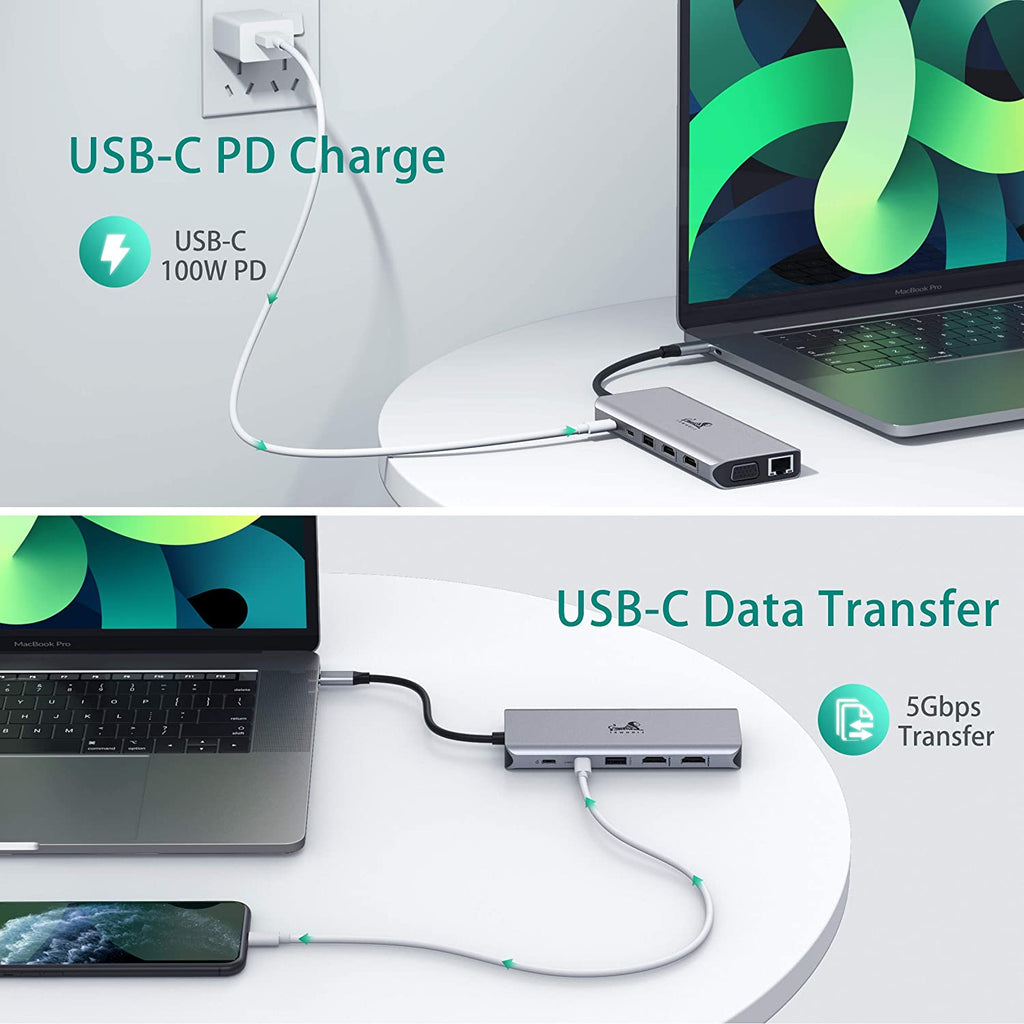

USB C Power Charging Port

It supports to charging your laptop at power up to 100W while connecting multiple devices, no need to worry about power storage.

Note: It's better to use the original charger directly cause it will provide the fastest charge speed.

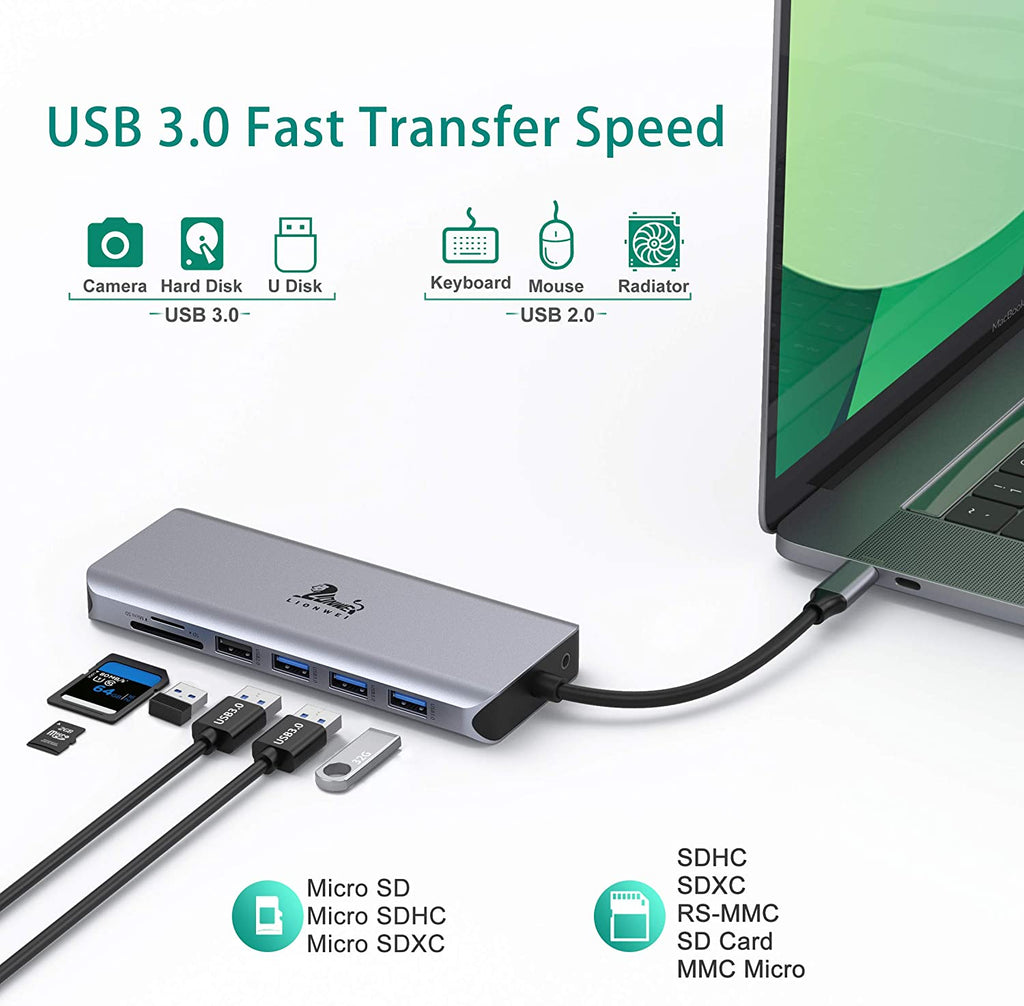

3*USB 3.0 & 2*USB 2.0

This laptop docking station supply enough usb ports for your laptop.

With 3*USB 3.0 ports (speed up to 5Gbp/s), you can connect smartphones, tablet, and U disk to transfer music, movies and large files.

With 2*USB 2.0 ports (speed up to 480mbp/s), you can connect keyboard or mouse without delay.

SD/TF Card Reader

Compatible with SD, SDHC, SDXC, MicroSD, MicroSDHC, Micro SDXC cards are supported with up to 104MB/sec. Super fast read and write speed, let you get access your files easily. SD card and Micro SD can work simultaneously.
